High-Strength Plastic Eyebolt | Engineering Plastic Fastener for Cable Bundling, Wire Guiding, and Insulated Fixing
Anchor & Guide design, combining cable management, positioning support, electrical insulation, and corrosion resistance.
This high-strength plastic eyebolt is designed for wiring, cable guidance, and light-duty fastening applications. The eye can serve as a routing ring, allowing cable bundles or wires to pass through and be guided securely. The threaded end can be fastened to a base to form a reliable anchoring and support point.
Made from glass-fiber-reinforced nylon engineering plastic, this product offers good rigidity, mechanical strength, electrical insulation, and corrosion resistance. Compared with metal parts, plastic eyebolts help reduce weight and lower the risks of electrical conductivity, rust, and damage to cable insulation caused by metal contact.
Product Introduction
This series can be used together with cable ties or cable management solutions to keep wiring neatly arranged and to reduce cable displacement and wear in vibrating equipment or long-term operating environments.
Suitable for electrical equipment, communication wiring, industrial equipment, and lightweight metal-replacement applications.
Product Highlights
Anchor & Guide Design
Combines wire guiding, positioning, and fastening functions.
Engineering Plastic Material
Provides electrical insulation, corrosion resistance, and lightweight advantages.
Glass-Fiber-Reinforced Structure
Enhances rigidity and mechanical strength, making it suitable for industrial equipment applications.
Reduced Cable Wear
The smooth eye design helps reduce friction between the cable bundle and the fixing point.
Material Options Available
PA+GF offers advantages in cost and rigidity; RENY is suitable for applications requiring precision, high strength, dimensional stability, and dielectric stability in humid or high-temperature environments.
Applications
- Cable bundle fixing and routing in electrical equipment
- Cable management for communication and network wiring
- Internal wiring and light-duty fixing in industrial equipment
- Fastening locations requiring electrical insulation, corrosion resistance, or metal replacement
- Cable positioning and support in equipment exposed to vibration
Material Selection Guide
| Material | Positioning | Recommended Applications |
|---|---|---|
| PA+GF | Glass-fiber-reinforced nylon with high rigidity and cost advantages | General wiring, cable bundling, light-duty fixing, and industrial applications requiring insulation |
| RENY | High-performance nylon with high strength, low moisture absorption, and good dimensional stability | Precision assembly, higher-strength requirements, humid or high-temperature environments, or applications requiring higher dielectric stability |
Specifications / Dimensions / Features
| SPEC | Eyebolt Size | Material | Tensile Strength (N) | Torque (kg-cm) | Cable Dia. (Suggestion) | Features |
|---|---|---|---|---|---|---|
| M8 | Eye Inner Diameter: 16 mm Total Length: 82 mm (ref.) |
PA+GF | 5,200 | 10.2 | 10–12 mm | Suitable for thicker power cable bundles or applications requiring greater assembly clearance |
| M8 | Eye Inner Diameter: 16 mm Total Length: 82 mm (ref.) |
RENY | 4,800 | 13.4 | 10–12 mm | Suitable for thicker power cable bundles or applications requiring higher strength and dimensional stability |
| 1/4-20 UNC | Eye Inner Diameter: 0.5 in. (=12.7 mm) Total Length: 76 mm (ref.) |
PA+GF | 3,800 | 4.3 | 7–9 mm | General cable bundle management and routing applications |
| 1/4-20 UNC | Eye Inner Diameter: 0.5 in. (=12.7 mm) Total Length: 76 mm (ref.) |
RENY | 3,400 | 6.4 | 7–9 mm | General cable bundle management; suitable for higher-strength or humid/high-temperature environment requirements |
Note: The above values are based on product specification measurements and actual laboratory test data.

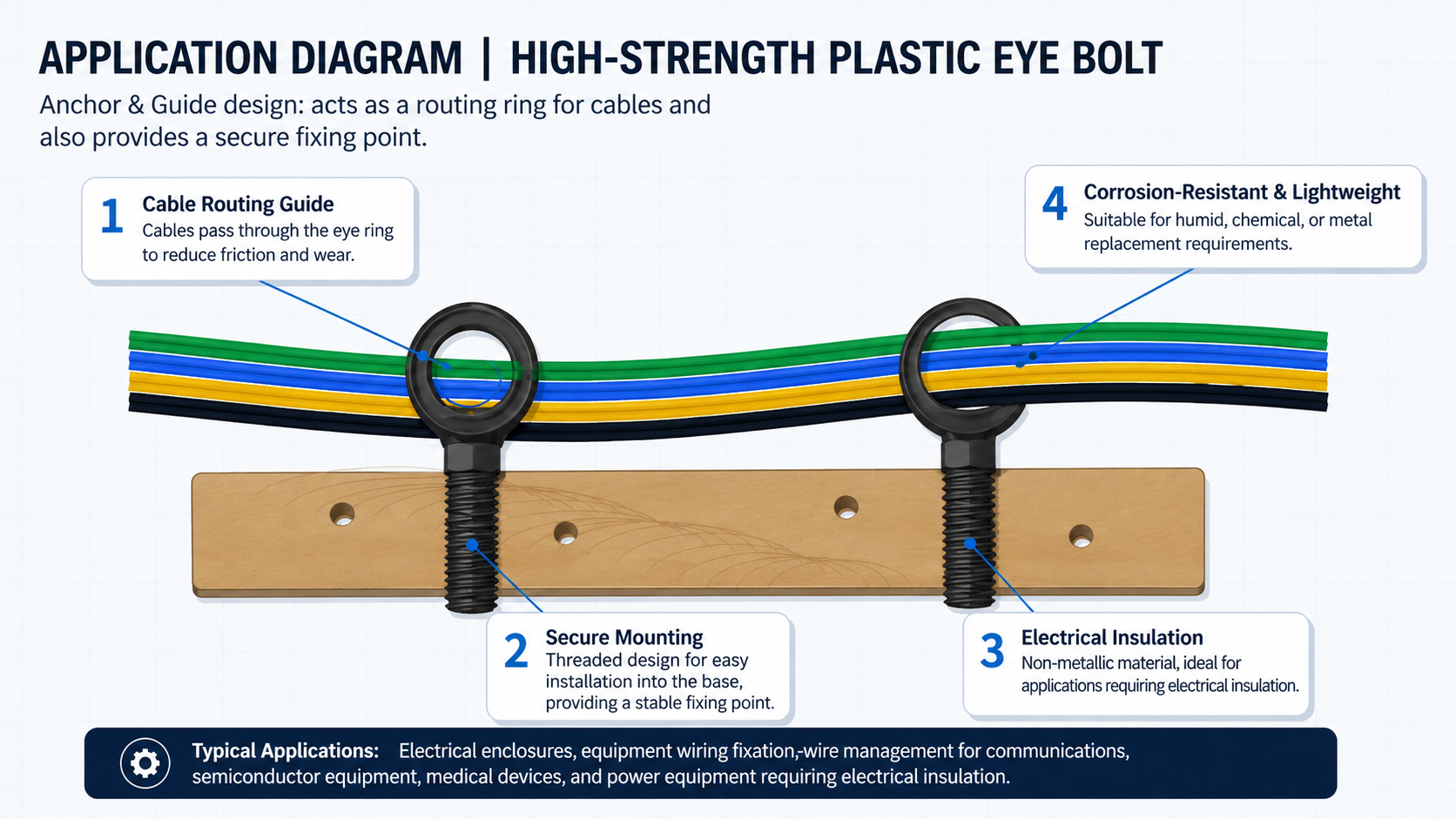

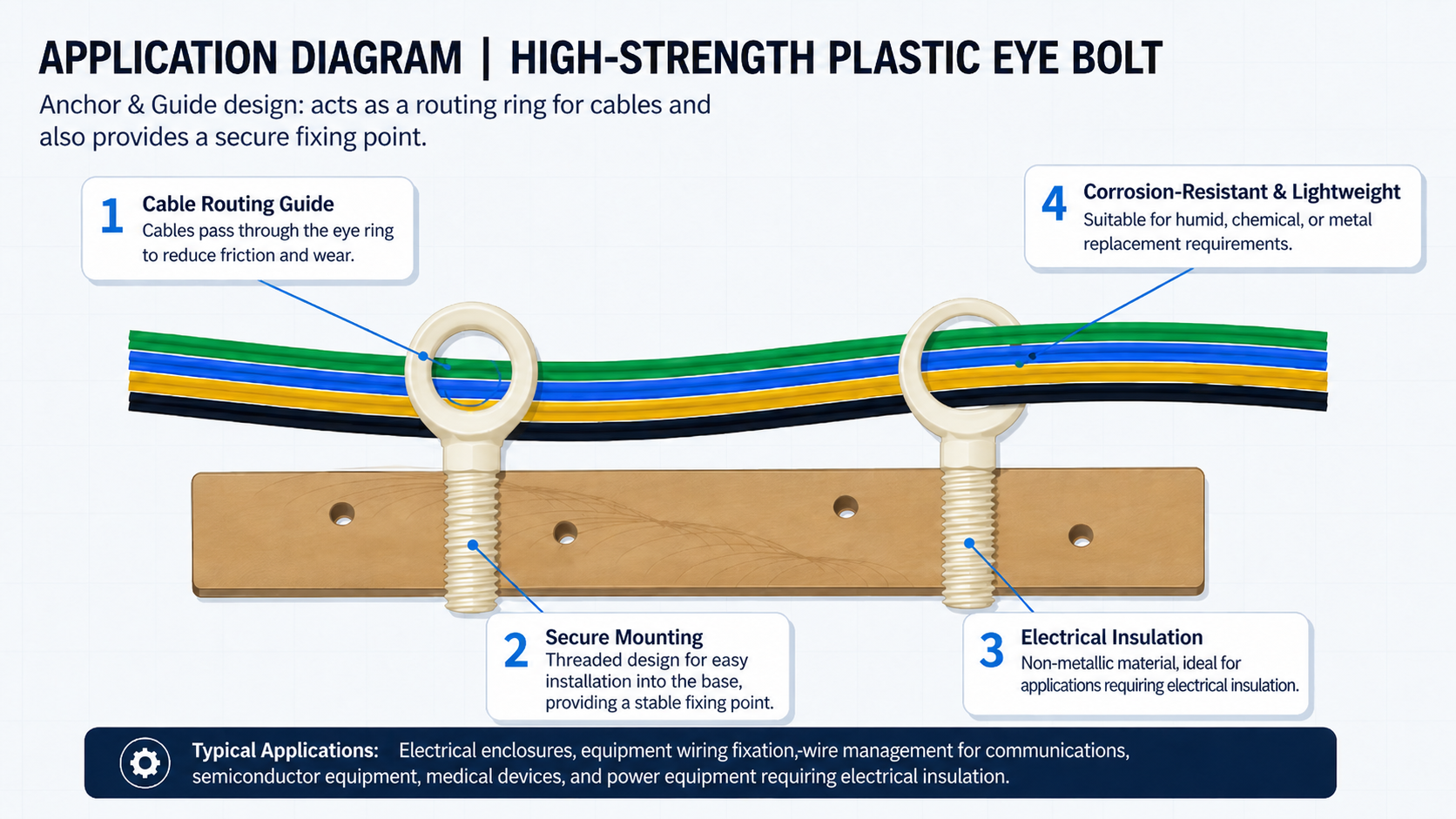

Functional Illustration

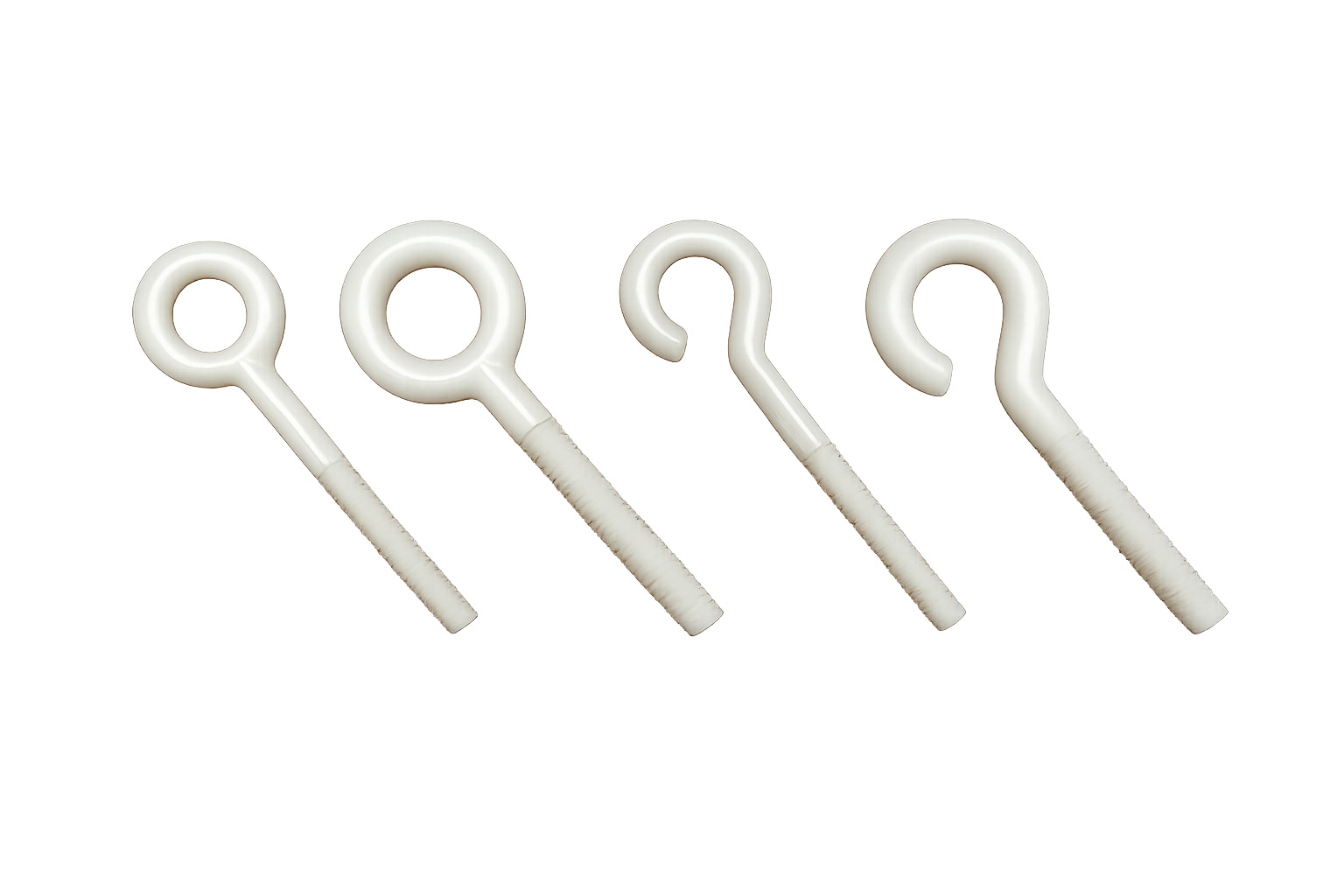

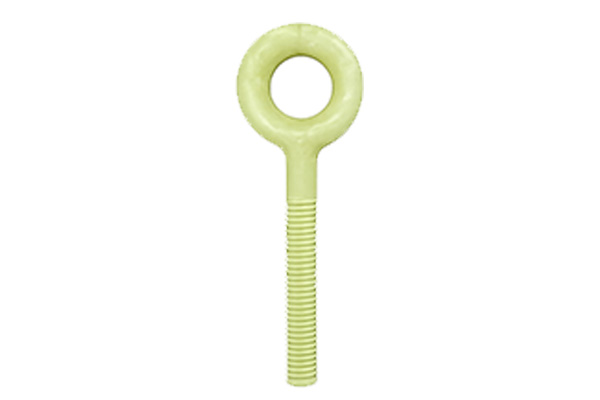

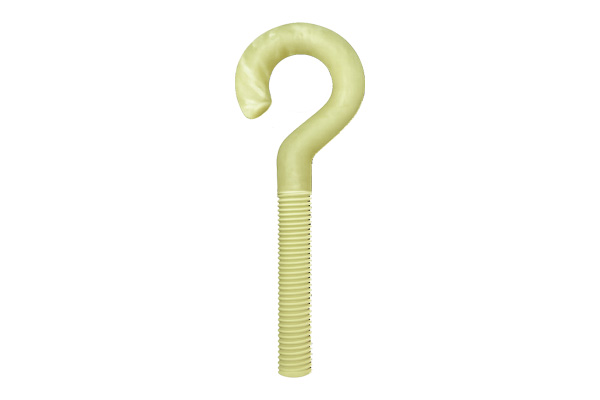

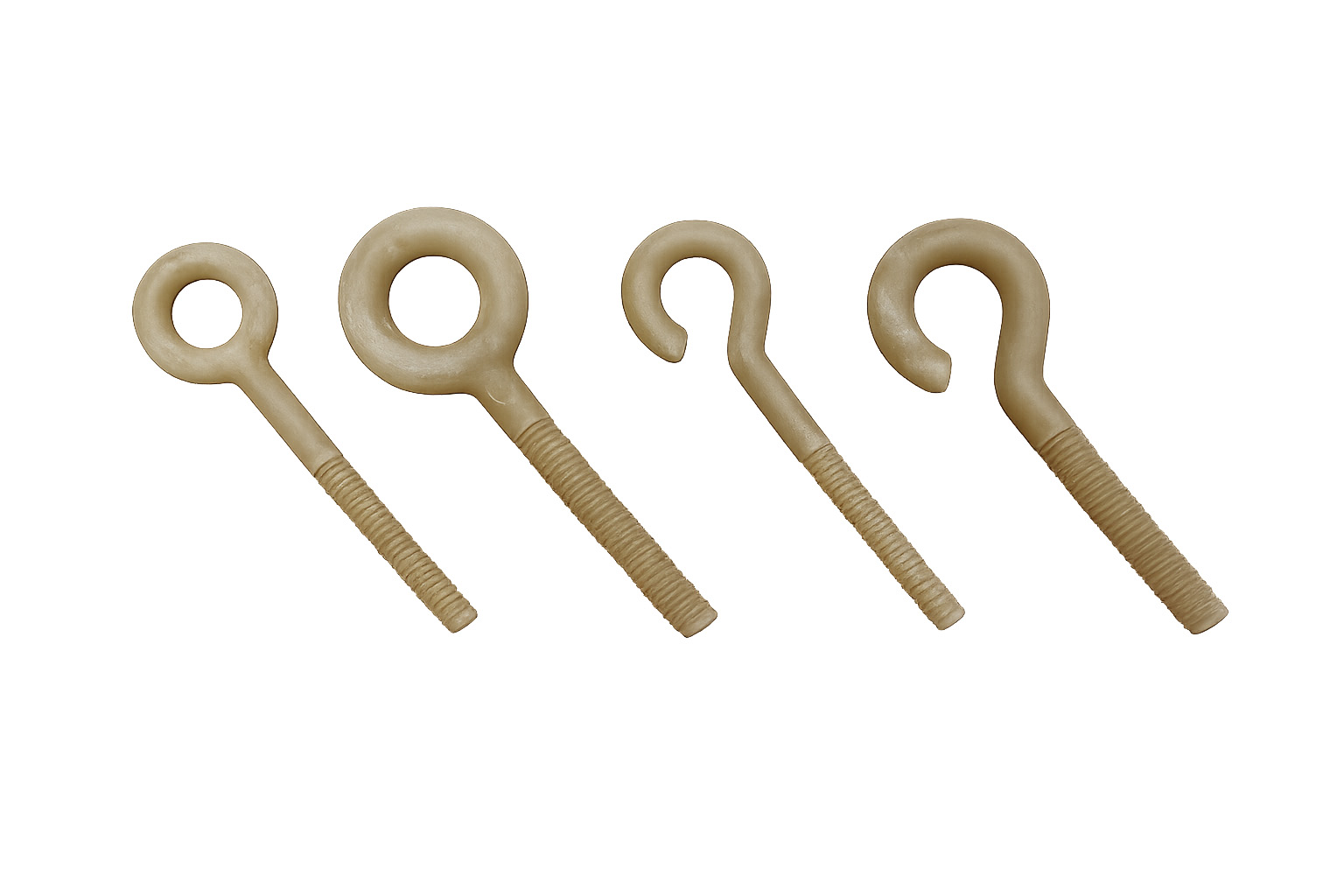

Product Photos
.jpg?857)
.jpg?337)
.jpg?4786)
.jpg?5797)
