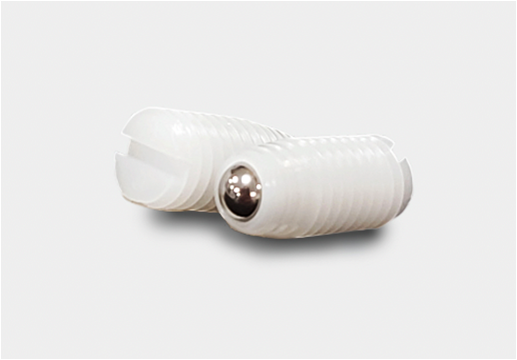

POM Ball Plunger
Product Introduction
Ball plungers are commonly used in applications requiring positioning and fastening, indexing, quick release and ejection, positive locking, and retention. In addition to axial loading, lateral force can also depress the ball, making the product suitable for positioning in sliding mechanisms.
- Mold positioning
- Workpiece ejection
- Drilling fixture positioning
- Limit switches
- Safety valves
Material Information
| Threaded Body (Slotted) |
Steel Ball | Spring | Specification |
|---|---|---|---|
| POM | POM | SWP | M6 × 12 mm |
| POM | POM | SUS304 | M8 × 15 mm |
| POM | SUS304 | SUS304 | M10 × 16 mm |
Application Examples

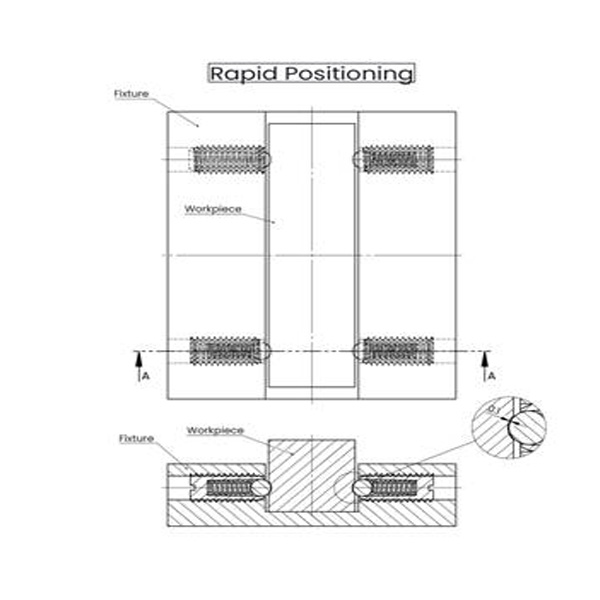

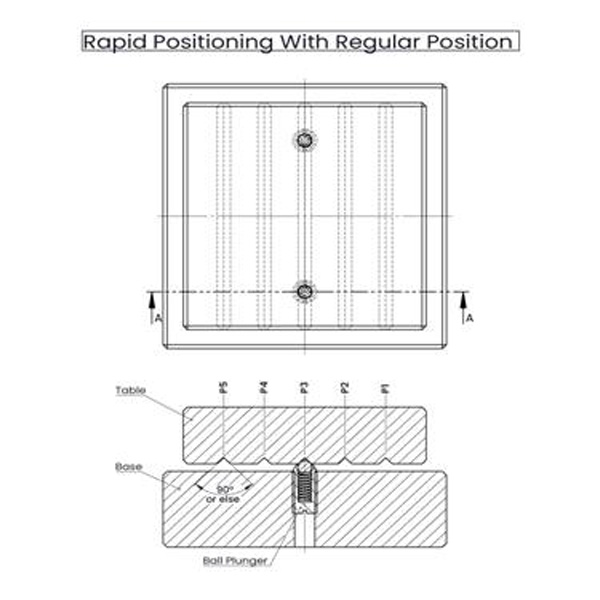

Rapid Positioning

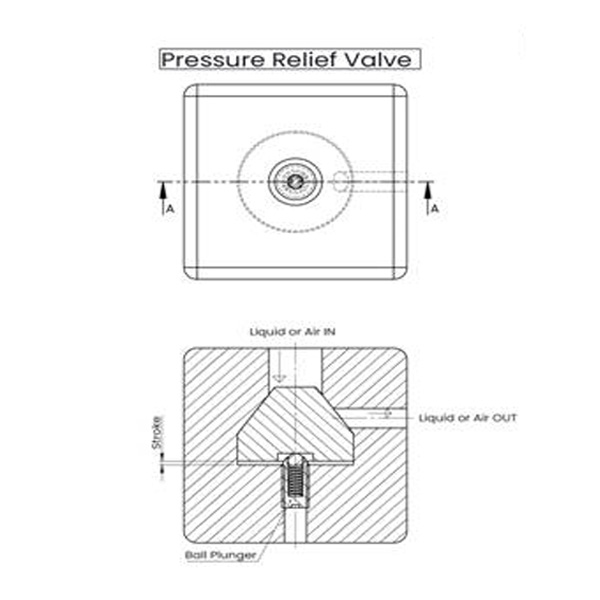

Pressure Relief Valve

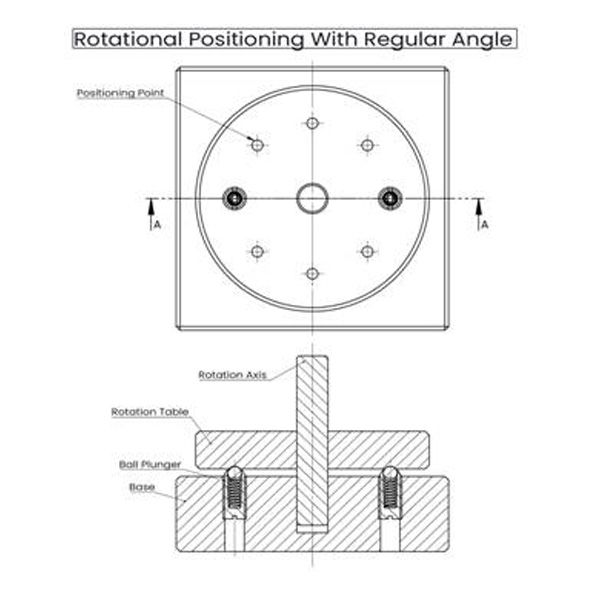

Rotational Positioning
